SCHWING CONCRETE PUMP PARTS

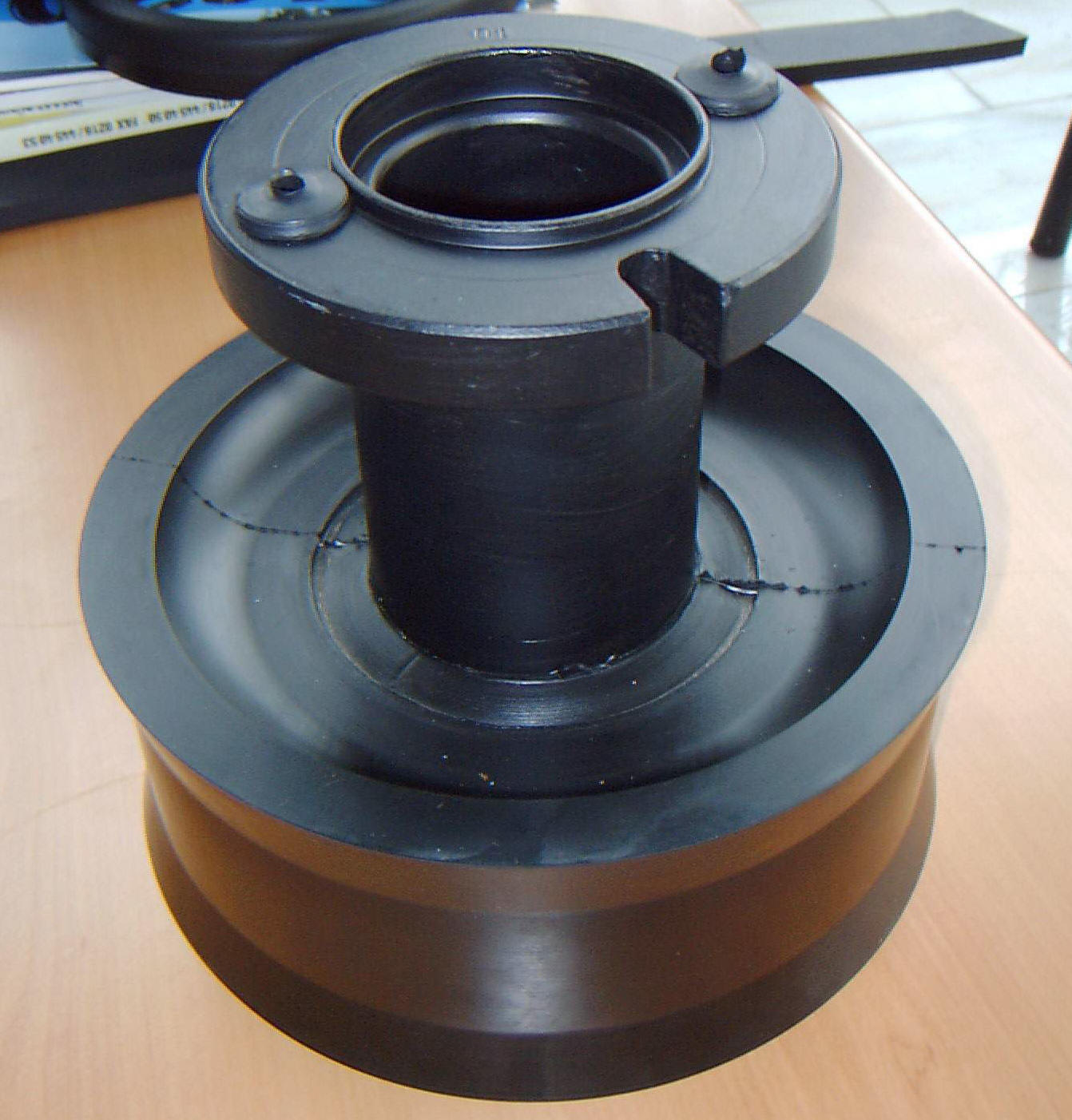

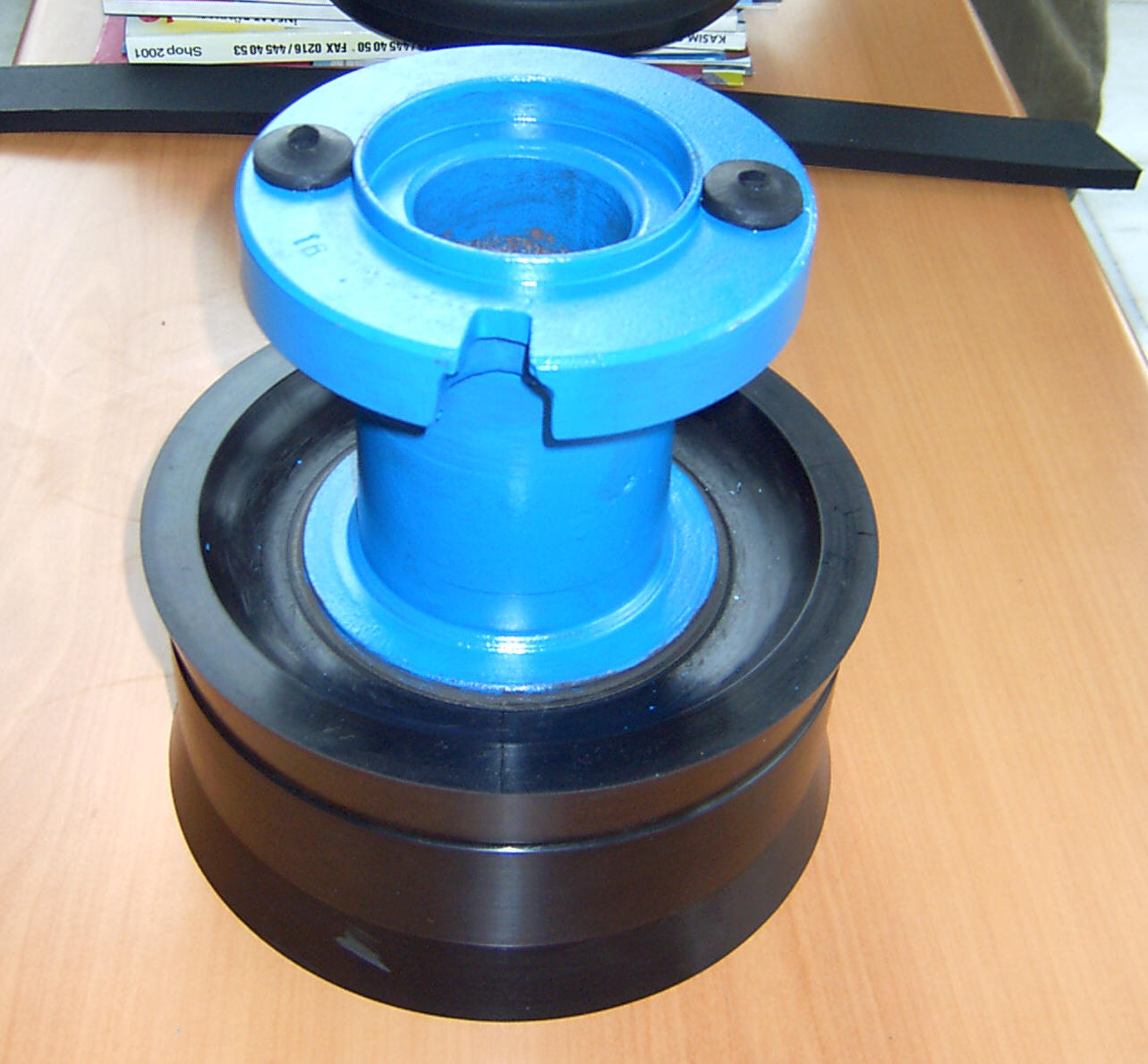

             Rubber Piston
Schwing Part Nr      DN
1000 4382 7230

      DN 230
1000 4382 8200       DN 200
1000 4382 5180       DN 180



O - Ring
Sizes Schwing Nr .
60 x 5 12 00 76 50
70 x 8 12 17 43 60
95 x 8 12 16 24 10
195 x 3 12 16 66 40
225 x 3 12 16 66 50
200 x 10 12 00 60 20
240 x 3 12 00 65 00
265 x 5 12 00 66 30
270 x 3 12 00 66 60

Hydraulic Cylinder

Schwing Part Nr DN Länge ( mm )
100 180 1400 DN 196 / 180 1.400
100 200 1400 DN 216 / 200 1.400
100 200 1600 DN 220 / 200 1.600
100 200 2000 DN 220 / 200 2.000
100 230 1600 DN 250 / 230 1.600
100 230 2000 DN250 / 230 2.000

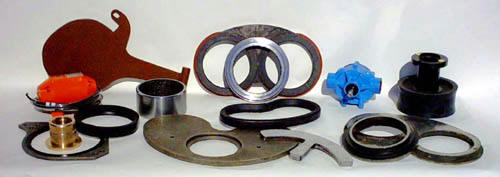

Schwing Wear Parts
Schwing Part Nr Bezeichnung

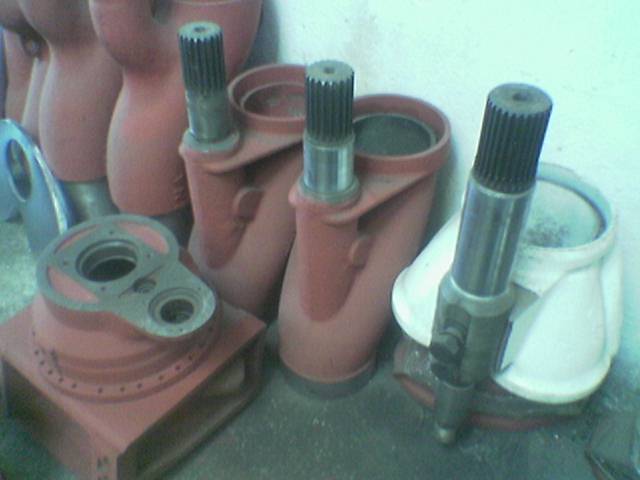

10069209 Rock Valve RMDN 210 / 180

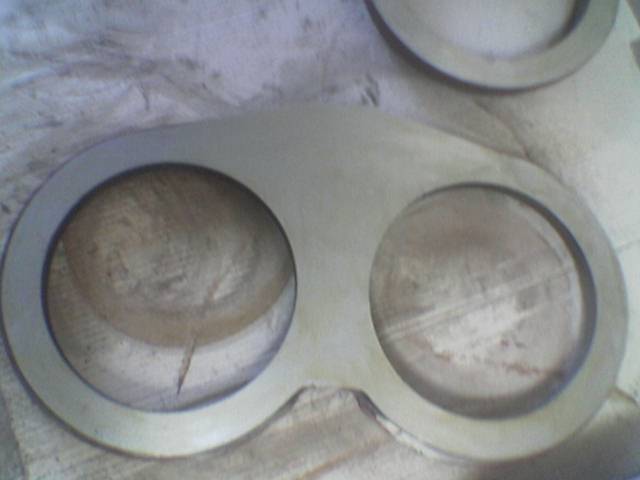

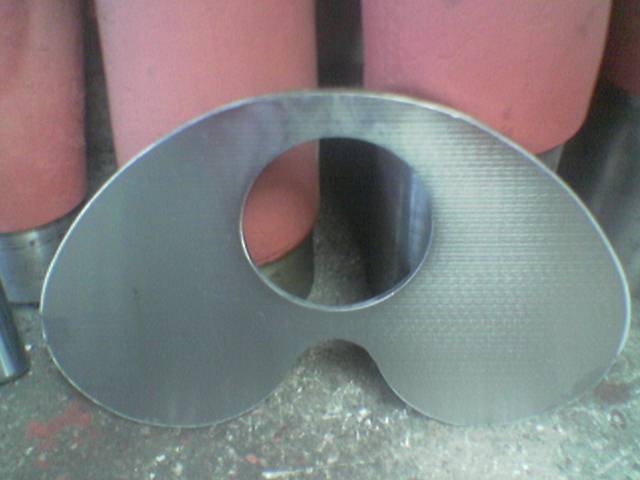

10074767 Wearing Insert DN200

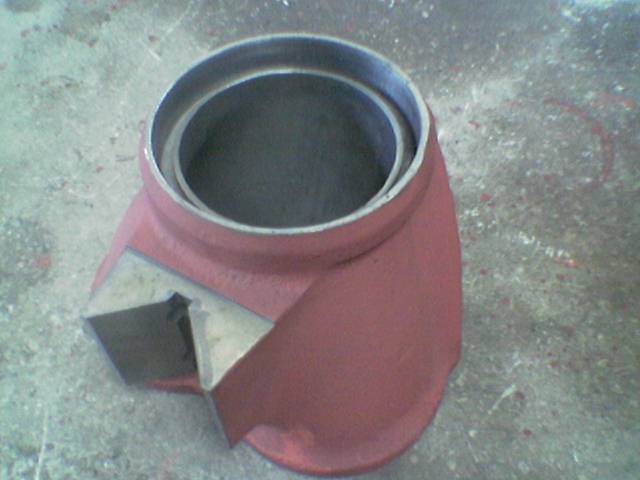

10018046 Housing Lining DN180
10018046 Cover Lining
10064073 Slewing Shaft
10063939 Cutting Ring
10029138 Kidney Seal DN180
10032182 Kidney Seal DN200

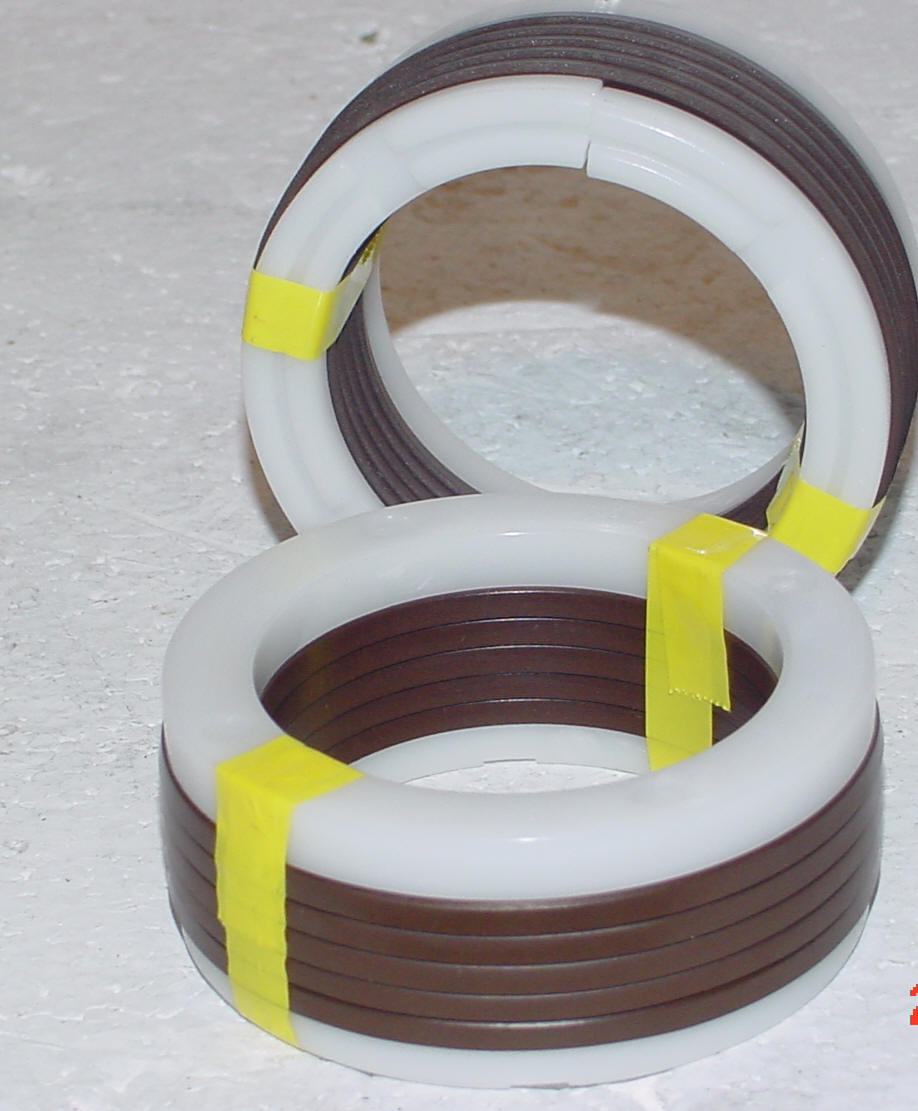

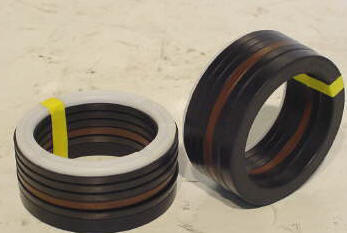

 Schwing Seals





Sizes                                                                                               Sizes

 63 x 83 x 37                                                                                  1 )  55 x 75 x 30

                                                                                                       2 ) 45 x 65 x 27,5



Other  Schwing Parts



Hypro water pump

Series 7560 - 8 Roller
Medium Flow Applications for 540 or 1000 rpm
Direct PTO Coupling

Features
• Max. flow: 12 gpm/45.4 L/min at 540 rpm;
• Max. flow: 22.5 gpm/85.2 L/min at 1000 rpm
• Max. pressure: 300 psi/20.7 BAR
• Max. rated speed: 1000 rpm
• Max. fluid temperature: 140°F/60°C
• Shaft: 15/16" solid
• Port sizes: 3/4" NPT
• 1" hose barb inlet fitting for 1000 rpm operation
• Shaft rotation: CCW (CW available)*
• Weight: 13 lbs.; 5.89 kg
• Rollers: Super Rollers standard (Poly, Teflon and Buna-N available)
• Shaft Seals: Viton standard (Buna-N, leather available)
